Dimensions (L × W × H): 10.30 cm × 2.20 cm × 5.00 cm
€0.96 excl. VAT

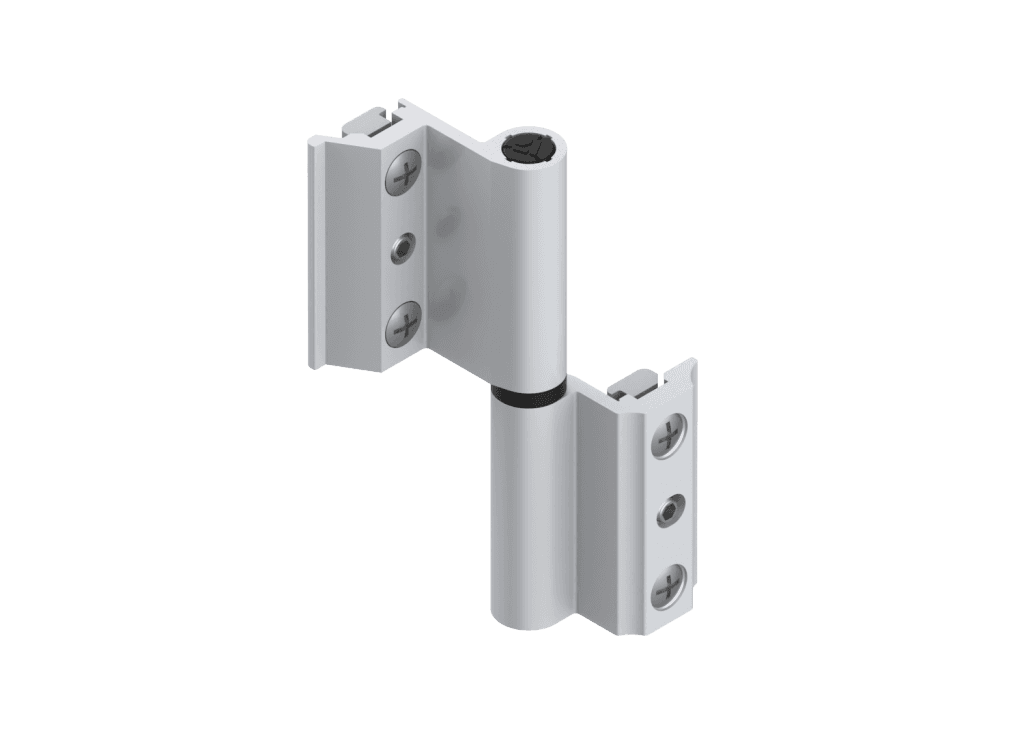

Hinge ALMA 2074+ for aluminum window and door – load 60 kg/pair, adjustable - Right Side
Visit ALMA COMPONENTES, S.L.'s storeDescription
The ALMA hinge ref. 2074+ is the standard hinge for aluminum windows and doors with European chamber. Delivered with pre-mounted brackets, shaft, and already mounted bushings, it simplifies installation. Its central pin prevents false sliding and its eccentric bushing allows for lateral adjustment of ±1 mm for precise fitting of the leaf. It accepts leaves up to 1000 x 2000 mm and supports 60 kg per pair of hinges. Adaptable to frame channels 14x18, 13x16.5, 12x15, and 10x14. Body made of extruded aluminum, stainless steel screws and shaft, zamak bracket, polyamide bushing: corrosion resistance certified UNE-EN 1670 grade 4. Available in white, black 9005, RAL, silver, gold, bronze, and stainless steel. Packaged in 50 units (pre-mounted brackets, box 415x215x60 mm); eccentric bushing available separately. Ideal for aluminum casement, tilt-and-turn window, or aluminum door, in new builds or renovations.
Brand
Alma
Opening type
Tilt-and-turn window
Warranty
1 year
Origin
European Union
Repairability index
6
Assembly ease
Medium
Reversible
-
Corrosion grade
IV: High
Recycling advice
100% recyclable aluminium (metal thread); sort steel, stainless steel and zamak; Place plastic parts (POM/polyamide/EPDM/PVC) in shredder.
Pieces per kit
1 paumelle (corps + bride + axe + coussinets)
